Features:
1.The product adopts high-quality materials and the design of the ABS shell greatly increases the product's lifespan
2.The product design is lightweight and very suitable for DIY enthusiasts

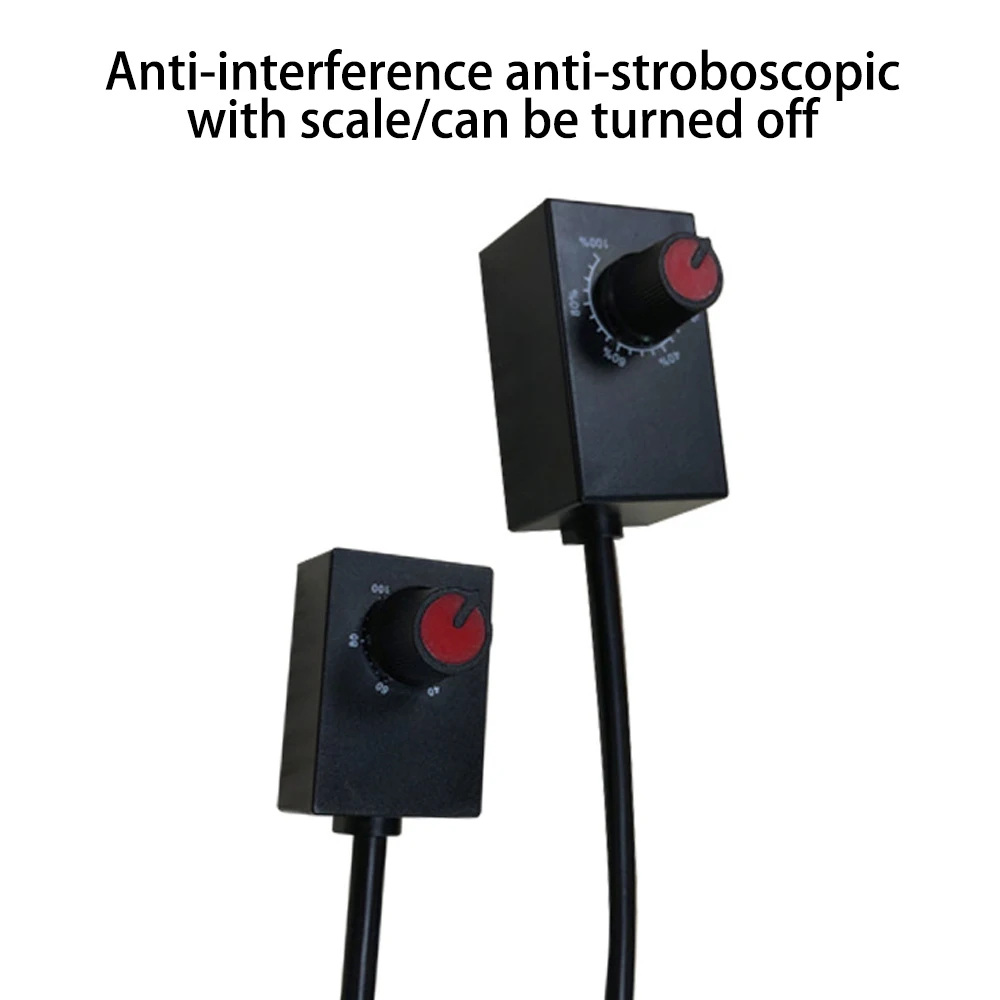

3.Dimming range: 0-100% stepless dimming, no flicker, anti-interference

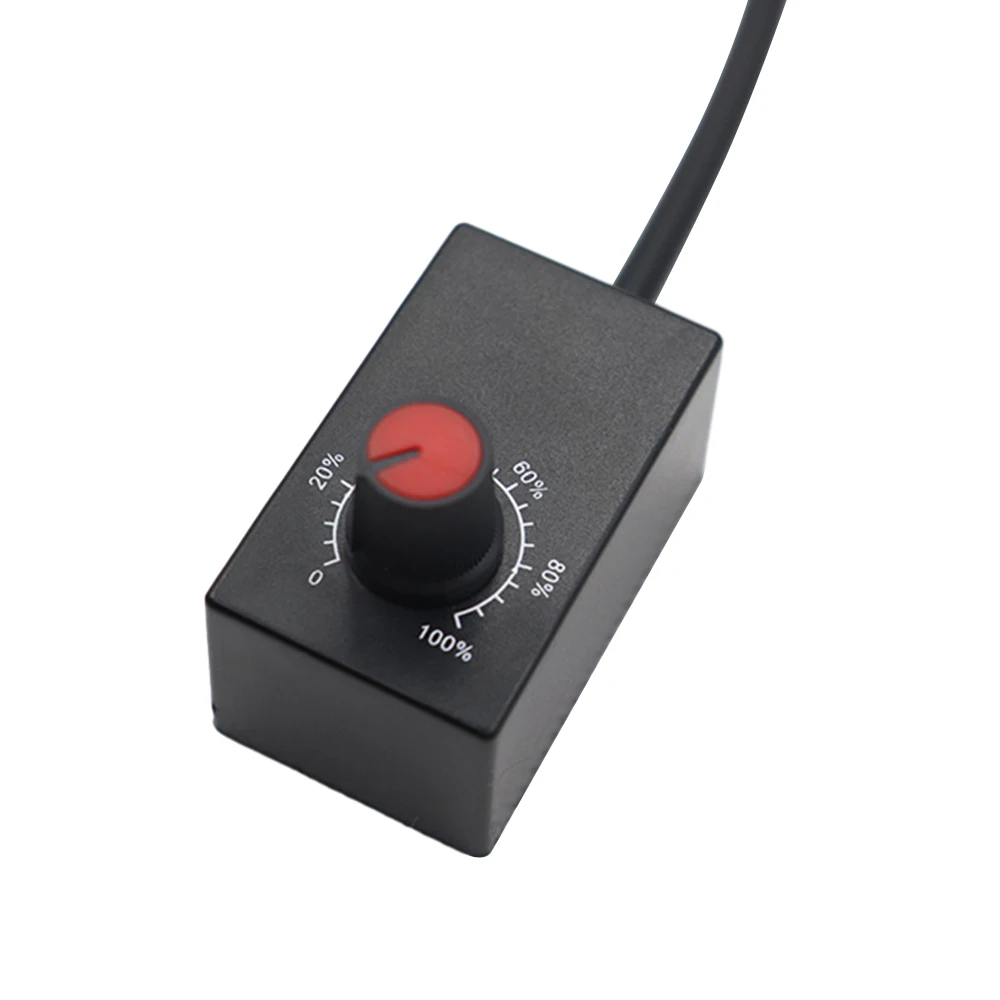

4.Manual rotation design, with scale, can be turned off, and the product is simple and convenient to use
5.100% compatible with drivers on the market with standard 0/1-10V dimming signals

Product Description:
This is a passive output product that requires signal voltage output from the power supply, without connecting to the power supply. It can be used to dim any input voltage power supply. The effective dimming signal current is 40mA, the signal voltage is 0-10V, the dimming range is 0-100% stepless dimming, no flicker, anti-interference, working temperature is -15-40 ° C, 100% compatible with drivers on the market that use standard 0/1-10V dimming signals, standard and enlarged options for you to choose from, This is a very good product.

Parameters:
Name: LED Dimming Controller

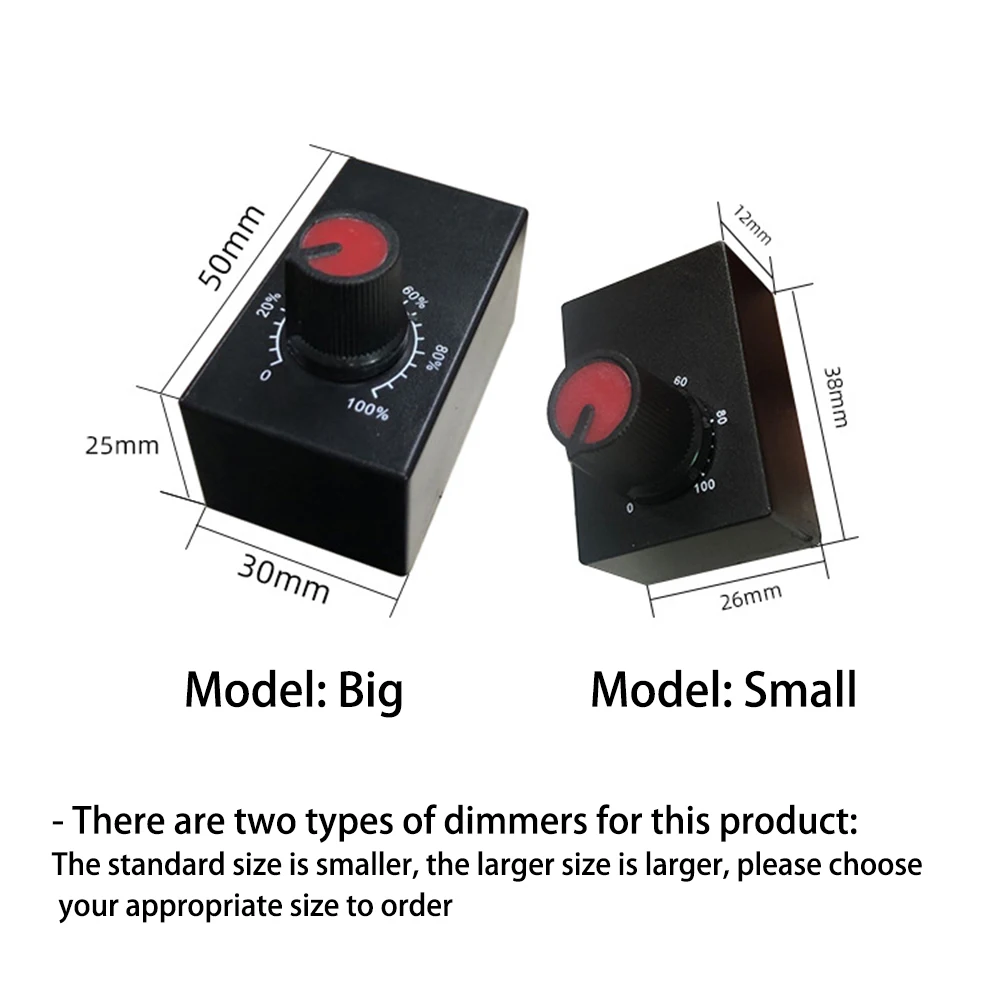

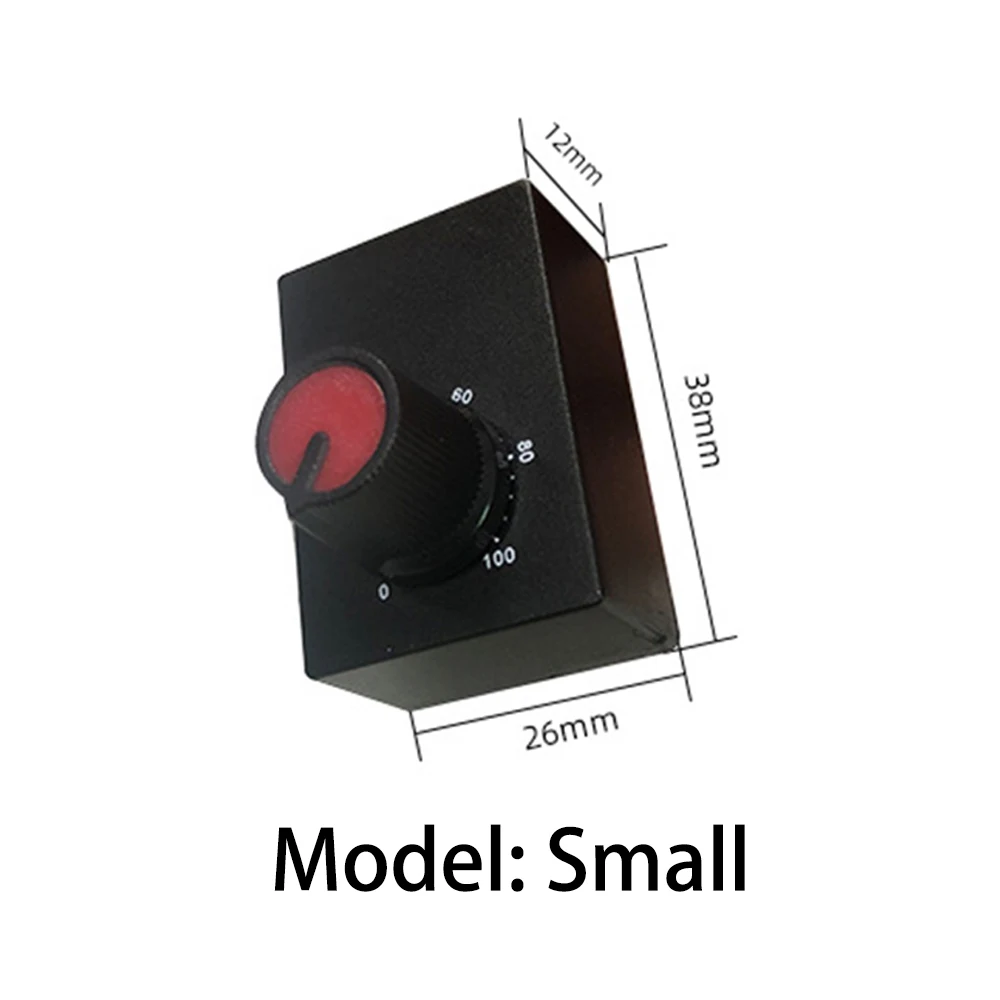

Standard size: 38mm * 26mm * 12mm

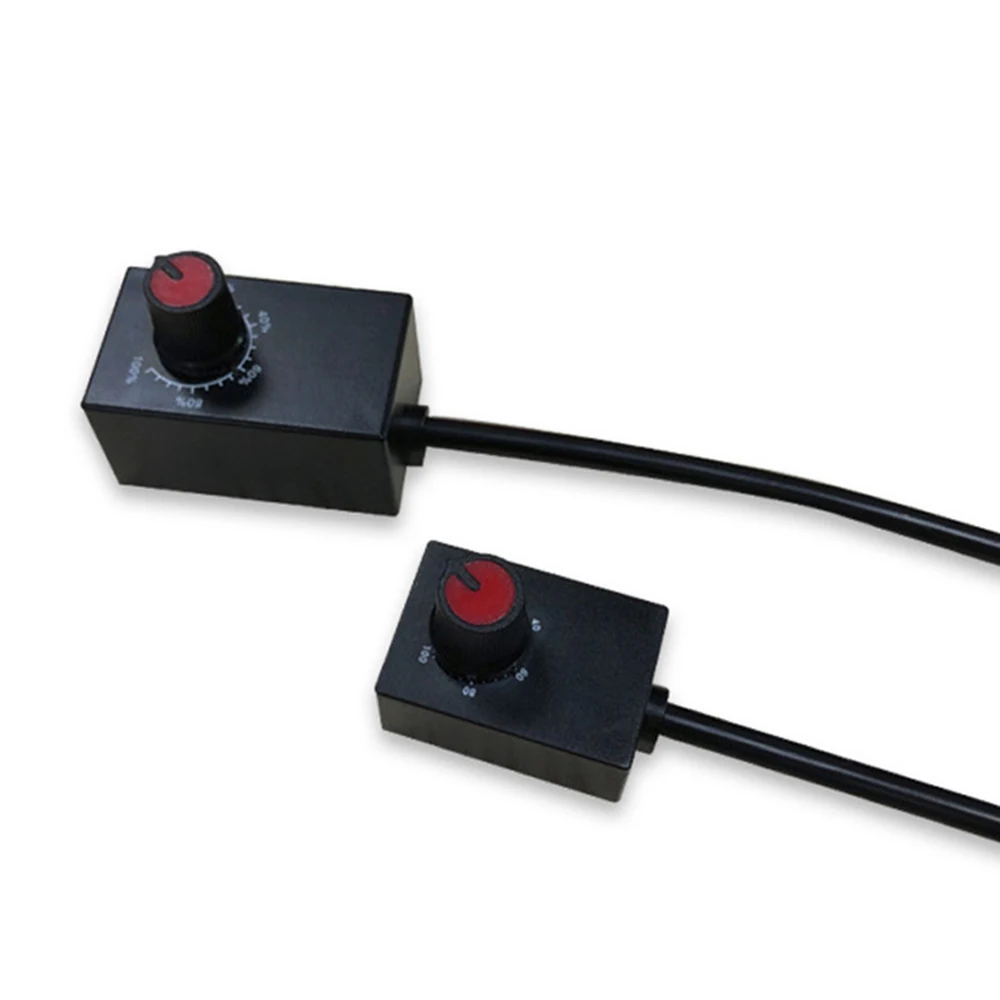

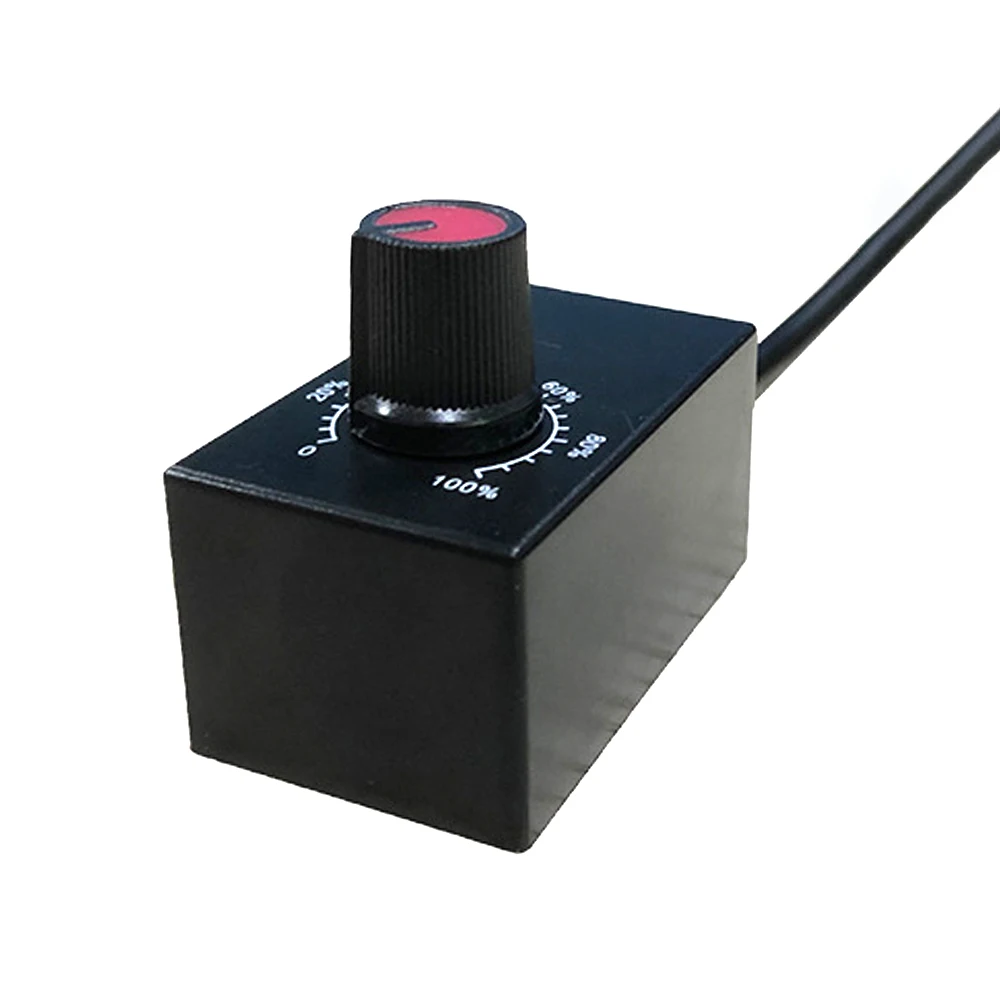

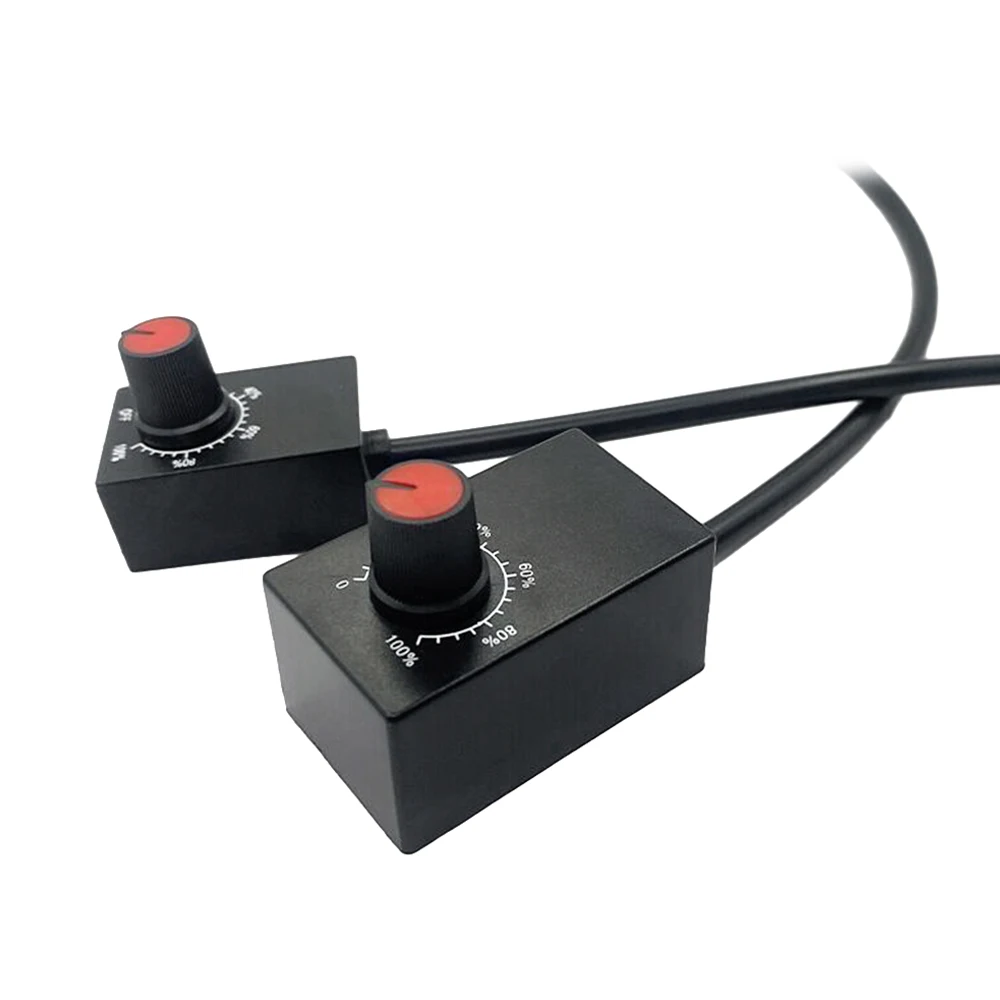

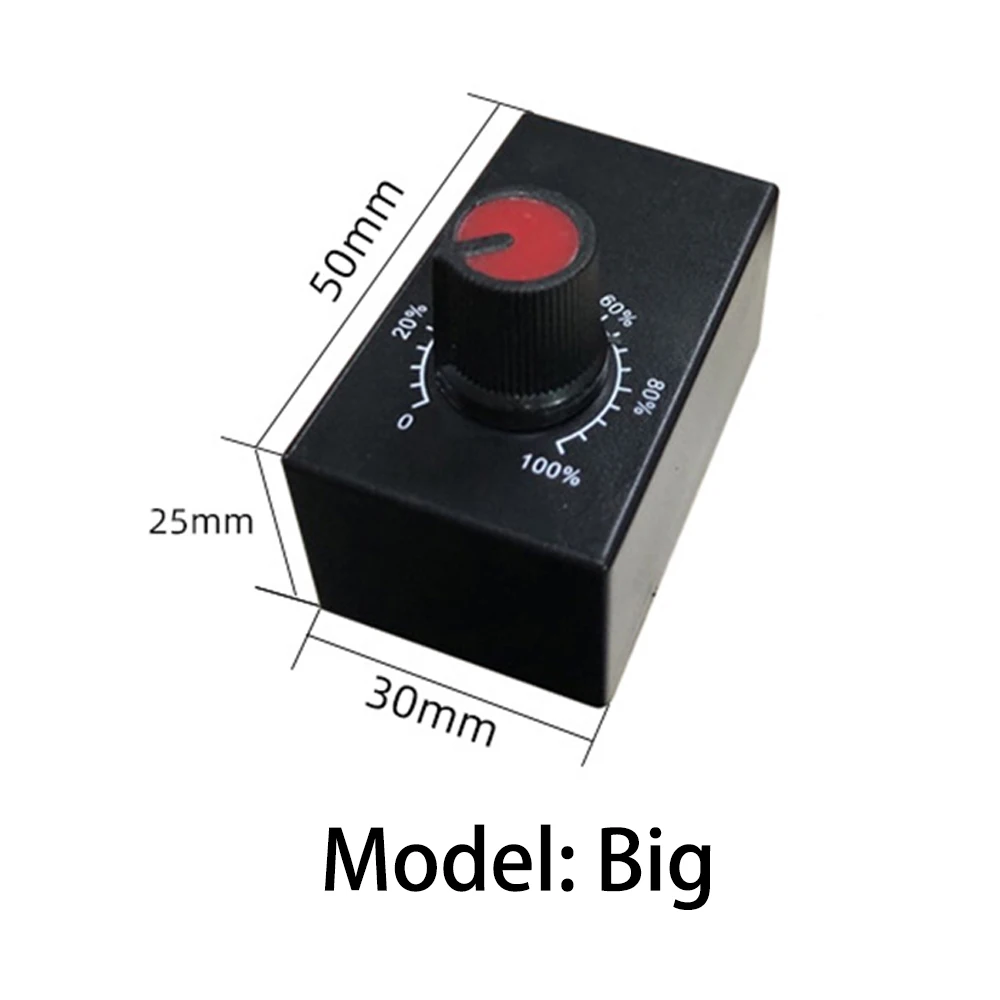

Enlarged size: 50mm * 30mm * 25mm
Effective dimming signal current: ≤ 50mA
Adjusting voltage: DC0-10V/DC1-10V
Dimming range: 0-100% stepless dimming
Working temperature: -15-40 ° C

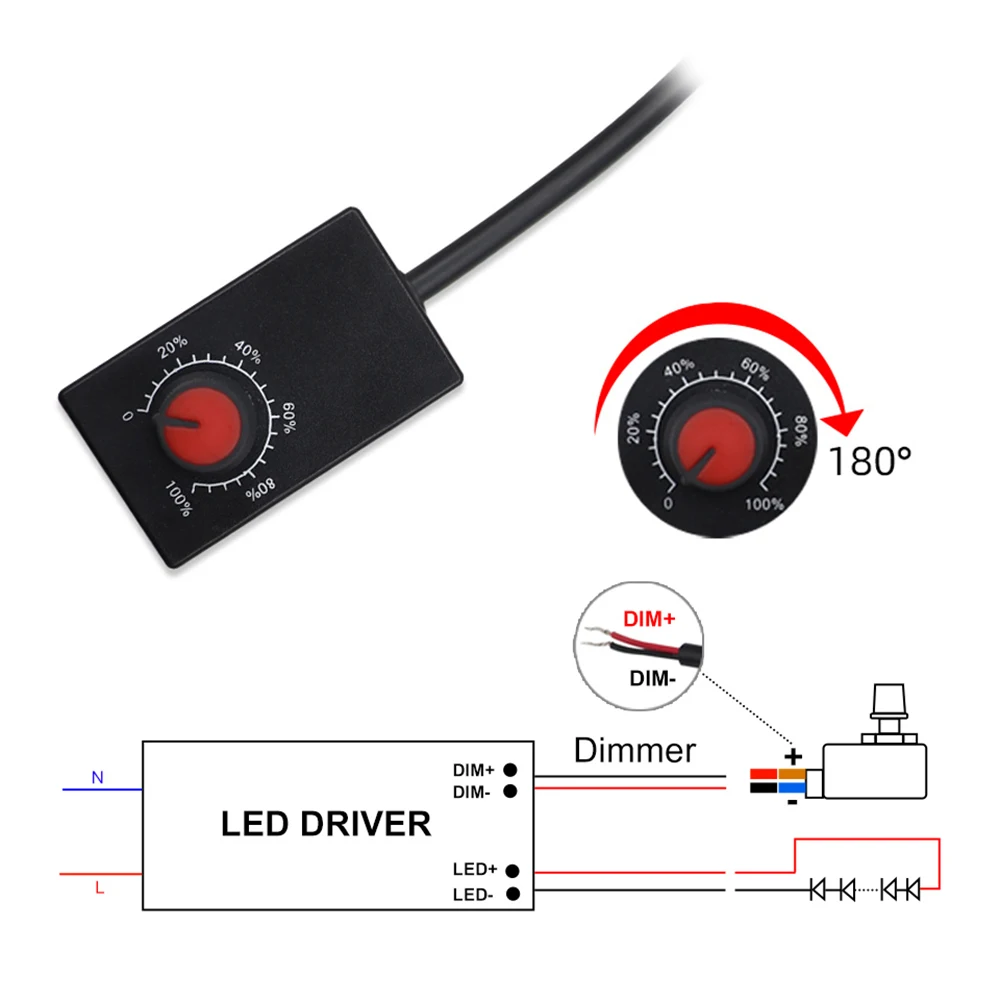

Wiring principle: Dimming signal input, D+is the positive pole of the dimming signal, and D – is the negative pole of the dimming signal.

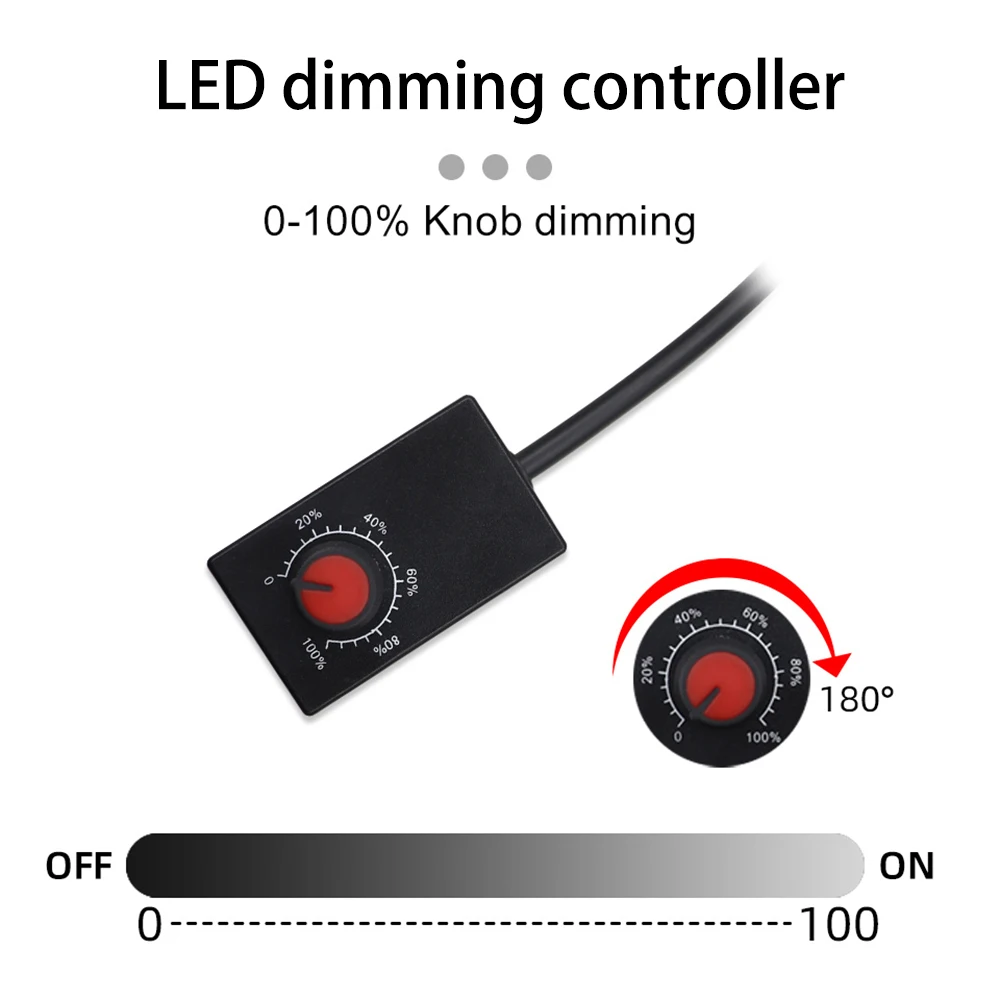

Usage: 0-10V light source less dimmer, manually rotate 180 ° to adjust light, compatible with multiple products.

Package include:
Dimmer X1
